Gas controller
Gas controller for rail gas pressure welding machines.
Specification
| Model | Analog type display | Digital type display | |
|---|---|---|---|
| MA-10255 | DGF-A(B) | DGF-C | |
| Power supply | Unnecessary | AC100-240V Single-phase | AC100-240V Single-phase |
| Operation method | Manual adjustment (Pressure & flow adjustment) |
Manual adjustment (Flow adjustment) |
Automatic setting |
| Size (mm) | W400×D420×H422 | W440×D355×H265 | W510×D415×H300 |
| Weight | 21kg | 13kg | 23kg |
| Installation | Installation Horizontal installation | Horizontal installation unnecessary | |
| Display |  Float type |
 7-segment LED 4digit |
 7-segment LED 4digit |

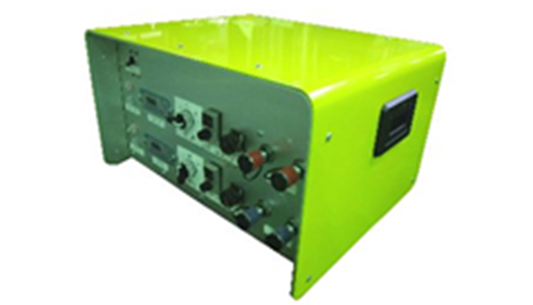

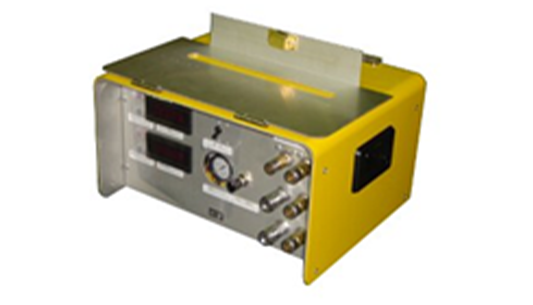

| Appearance |  |
 |
 |
| Operating environment | Temperature: -10℃ to 40℃, humidity: 20 to 85% RH, but no condensation. （Oxygen and acetylene gas should be used with sufficient heat retention.） |
||
| Characteristic | ・Power supply is Unnecessary | ・Easy to read digital display ・Data of flow rate can be recorded 【Separate Recorder is required】 ・Lineup of battery type |
・Easy to read digital display ・Data of flow rate can be recorded 【Please connect to TGP - 8 - S2, or a separate recorder is required】 ・Automatic flow control function by TGP-8-S2 |
DESIGN/PARTS may be changed without notice
